รายละเอียดสินค้า:
|
| ความเร็ว: | 1500 รอบต่อนาที, 1800 รอบต่อนาที | แรงดันไฟฟ้าที่ได้รับการจัดอันดับ: | 230/400V, 110/220V |
|---|---|---|---|
| ระดับไอพี: | IP23 | ประเภทเครื่องยนต์: | ระบายความร้อนด้วยอากาศ 2 จังหวะ |
| ระบบระบายความร้อน: | ระบายความร้อนด้วยน้ำ | จัดอันดับความถี่: | 50เฮิร์ต |
| เสียงรบกวน: | ≤105 เดซิเบล(เอ) @ 1ม |
Product Details

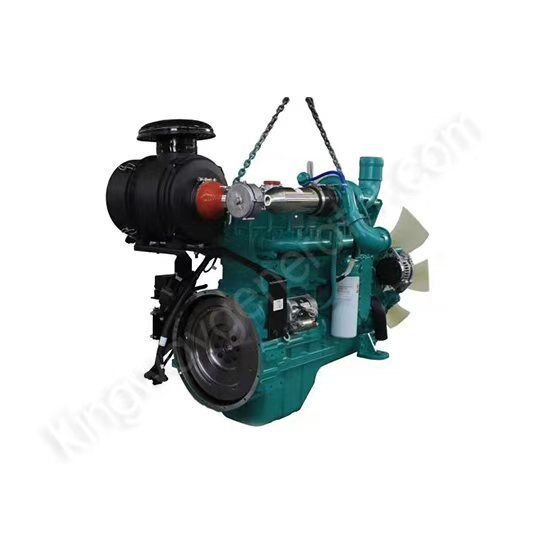

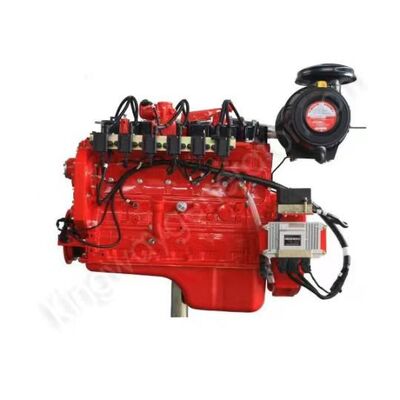

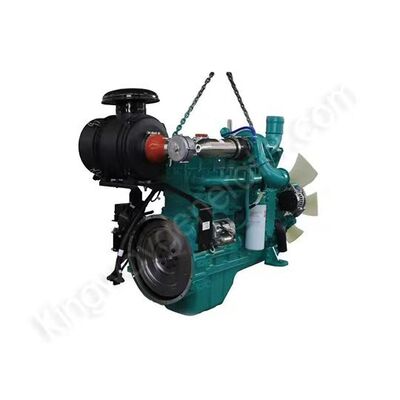

Gas engines are efficient and eco-friendly power equipment compatible with clean energy like natural gas and liquefied gas. With a power range of 50KW-1000KW, they can replace traditional fuel engines and are widely used in scenarios such as power generation, construction machinery, and distributed energy systems, helping customers reduce costs and achieve green production.
They have three core advantages: high efficiency and energy savings (fuel utilization increased by 15%-20%), low-carbon and environmental protection (no black smoke, CO₂ emissions reduced by over 30%), and stability and durability (annual failure rate ≤0.5%, service life of 15 years). Customized solutions are provided for different industries—for example, generator sets support 72-hour continuous operation, construction machinery is suitable for field work, and distributed energy systems realize combined "power + heat" supply.
| Engine Specifications | |
| Model | LYC8.3H-G180 |
| Rated /Standby Power(KW) | 170/188 |
| Cylinder Number | 6 |
| Type | 4-Stroke,In-line |
| Bore x Stroke (mm) | 159x159 |
| Compression ratio | 17.3:1 |
| Rated speed (RPM) | 1500/1800 |
| Displacement (L) | 8.3 |
| Cooling method | Closed Water-cooled |
| Type | 4 Stoke, In-Line. |
| Fuel | Natural Gas/Biogas/LPG |
| Voltage | 230V/400V, 110V/220V, As Client's Requirement. |
| Frequency | 50HZ/60HZ |
High Efficiency & Low Gas Consumption
Optimized combustion system and precise electronic air‑fuel ratio control deliver lower gas consumption, significantly reducing long‑term power generation costs for 24‑hour continuous stable operation.
Wide Gas Compatibility
Compatible with natural gas, biogas, landfill gas, coal‑bed methane, blast furnace gas and biomass gas. High tolerance to impurities and hydrogen sulfide, suitable for remote areas, industrial mines and farms.
High Reliability & Long Service Life
Robust engine structure with durable key components, long overhaul cycle and low failure rate. Ideal for industrial & commercial standby power, combined heat and power (CHP), and distributed power stations for long‑term unattended operation.
3 Environmental Compliance Advantages
Low Emission & Low Noise
Lean‑burn technology ensures low NOₓ and CO emissions, meeting domestic and international environmental standards for Europe, Southeast Asia and other regions. Standard noise reduction system provides excellent noise control.
Waste Heat Utilization for CHP
Can be equipped with waste heat recovery systems for heating, hot water supply and refrigeration, achieving high comprehensive energy efficiency for hotels, factories, farms and industrial parks.
4. Structural & Maintenance Advantages
Intelligent & Stable Control System
Adopts self‑developed or imported intelligent control systems with auto start‑stop, overload protection, fault alarm and remote monitoring features, easy to operate with high automation.
Easy Maintenance & Universal Spare Parts
Modular design for simple maintenance. Universal core spare parts with stable supply and fast after‑sales service, lowering later‑stage operation and maintenance costs.
Optional Explosion‑proof & High‑protection Grade
ATEX explosion‑proof and high‑protection versions available for mines, chemical plants and flammable & explosive environments with high safety performance.
5. Business & Export Advantages
Supports DDP export, customized voltage and frequency (50Hz/60Hz, 220V/380V/400V/480V etc.) for global markets.
Compact structure for easy transportation and installation with short delivery time.
One‑stop solutions including complete units, control systems, load banks, sound‑proof containers and waste heat systems are available.
